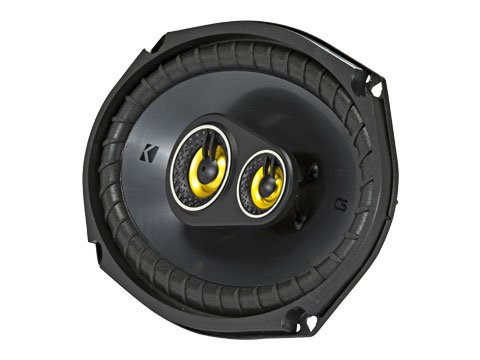

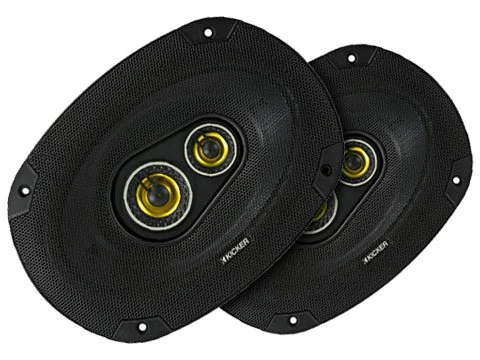

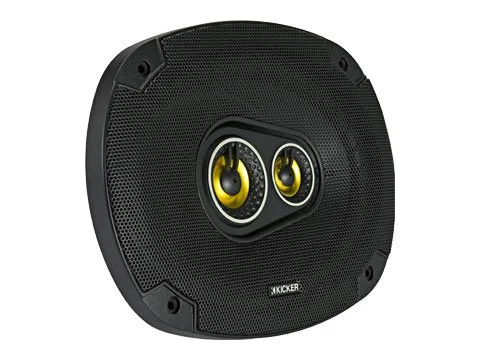

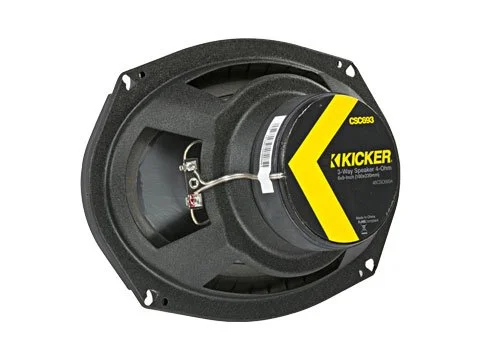

CS-Series 6x9-inch 3-Way Speakers are the perfect way to upgrade your factory system.
CS-Series 3-Ways deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. A stamped-steel frame supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.
The rugged 6x9-inch, 3-way speaker is especially cool. With a massive 300-watt peak power rating, this triaxial driver gives you extraordinary volume, while the integrated 2-inch midrange driver and dedicated tweeter give you crisp, accurate details for the realism you crave.
These CS speakers work best with 150 watts of recommended power. See below for more details.
Fits nearly every car made
Zero-protrusion tweeters to fit nearly any factory depth
Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
UV-treated poly-foam surround resists heat or direct sunlight
Large woofer magnet in a heavy-duty motor for ultra-clean bass
Integrated 2-inch (50mm) midrange drivers gives detailed attention to mid frequencies
PEI-tweeter construction provides superb clarity
Neodymium tweeter magnets allow for increased volume in high frequencies
Steel mesh grilles included for speaker protection
Speaker Design3 - wayWoofer Size [ in, mm ]6x9, 160x230Mid Size | in [mm]2, 50Tweeter Size [ in, mm ]1/2, 13DC Resistance [ ohm ]3.5Peak Power [ watts, per ANSI/CTA-2031-A ]450Recommended Amplifier Power [ watts RMS ]150Sensitivity - SPLo [ dB @ 1W, 1m ]92Effective Frequency Range [ Hz ]30-20kMounting Hole Diameter [ in, mm ]5 5/8 x 8 7/16, 143x215
Top Mount Depth [ in, mm ]3 3/16, 81Bottom Mount Depth [ in, mm ]3 11/16, 93Tweeter Protrusion [ in, mm ]1/16, 1GrillesYesTweeter Magnet MaterialElectric Crystal MotorTweeter Dome MateriaPEI [polyether imideTweeter DesignBalanced domeWoofer Cone MaterialPolypropyleneWoofer Surround MaterialPolyester foamWarrantyWhen purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase.
