The CS-Series 6-3/4-inch Component Speakers are built for awesome sound that plays as long as the ride takes you.

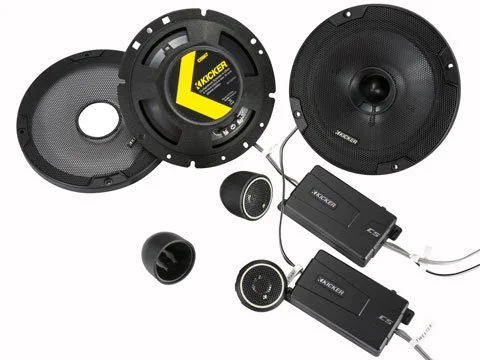

CS-Series components include titanium tweeters and two-way crossovers. Easily customize your sound with a smooth 12dB slope and three-position tweeter adjustment switch (0dB/+3dB/+6dB). The optimized footprint means great sound with hassle-free installation, no matter where you mount it!

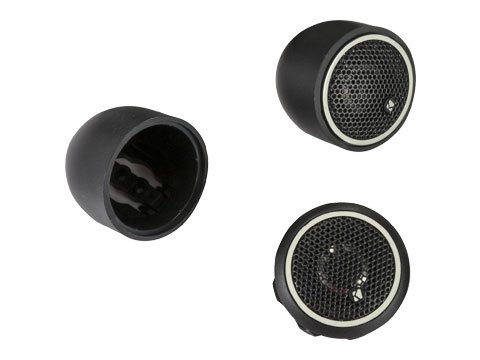

Mount the tweeter with the flush, angled or surface-mount tweeter pods, for outstanding imaging and a sophisticated look.
These CS-Series speakers work best with 100 watts of recommended power. See below for more details.
Fits nearly every car made
12dB crossovers with a smaller footprint for easier installation
Three-position tweeter switch for dialing in your highs
EVC™ (Extended Voice Coil) technology help deliver remarkable bass response
Titanium tweeter construction and neodymium magnets to reveal subtle details
UV-treated poly-foam surround assists with precise linear excursion
Phase plugs in the woofer cones eliminate any distortion
Steel mesh grilles protect your drivers
Three tweeter mounting options including flush, angled and surface pods
Woofer Size | in [mm]6 3/4 [165]Tweeter Size | in [mm]3/4 [20]Dome MaterialTitaniumPeak Power (watts, per ANSI/CTA-2031-A)300Recommended Amplifier Power (watts RMS)100Effective Frequency Range | Hz35-21kWoofer Mounting Hole Diameter | in [mm]5 1/2 [140]
Woofer Bottom Mount Depth | in [mm]1 13/16 [47]Flush Mounting Tweeter Hole Diameter | in [mm]1 9/16 [40]Flush Mount Tweeter Depth | in [mm]9/16 [14.5]High Pass | dB, at Frequency | Hz12, 4000Low Pass | dB, at Frequency | Hz12, 4000High Frequency Output Attenuation | dB0, 3, & 6Bolt-Thru GrillesYesWarrantyWhen purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase.
