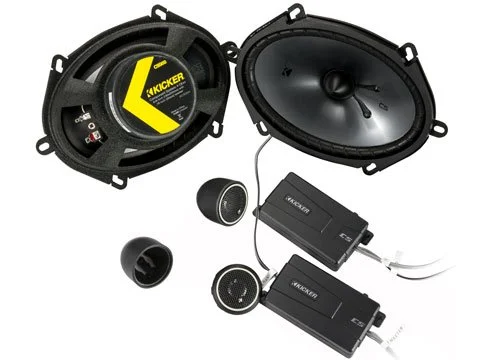

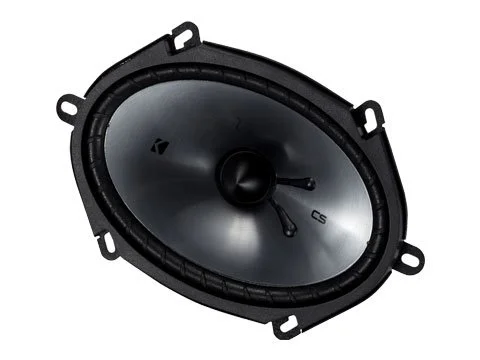

CS-Series 6x8-inch Component Speakers are the perfect factory upgrade when you have a separate woofer and tweeter.
CS-Series components include separate titanium tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality. The result is precise control with stunning musical realism. Use the flush, angled or surface-mount tweeter pods to perfect your imaging with a sophisticated new look.
These CS-Series speakers work best with 75 watts of recommended power. See below for more details.
Fits nearly every car made
12dB crossovers with a smaller footprint for easier installation
Three-position tweeter switch for dialing in your highs
EVC™ (Extended Voice Coil) technology help deliver remarkable bass response
Titanium tweeter construction and neodymium magnets to reveal subtle details
UV-treated poly-foam surround assists with precise linear excursion
Phase plugs in the woofer cones eliminate any distortion
Steel mesh grilles protect your drivers

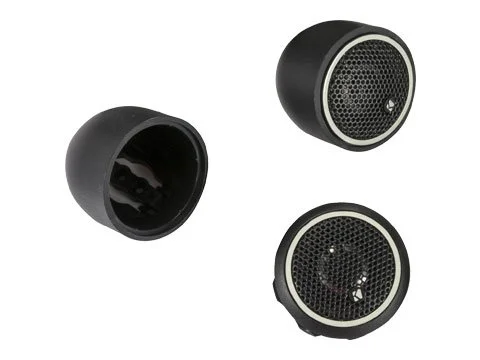

Three tweeter mounting options including flush, angled and surface pods
Woofer Size | in [mm]6x8 [160x200]Tweeter Size | in [mm]3/4 [20]Dome MaterialTitaniumPeak Power (watts, per ANSI/CTA-2031-A)225Recommended Amplifier Power (watts RMS)75Effective Frequency Range | Hz40-21kWoofer Mounting Hole Diameter | in [mm]5 x 7 3/16 [126x182]
Woofer Bottom Mount Depth | in [mm]2 3/16 [56]Flush Mounting Tweeter Hole Diameter | in [mm]1 9/16 [40]Flush Mount Tweeter Depth | in [mm]9/16 [14.5]High Pass | dB, at Frequency | Hz12, 4000Low Pass | dB, at Frequency | Hz12, 4000High Frequency Output Attenuation | dB0, 3, & 6Bolt-Thru GrillesNoWarrantyWhen purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase.
