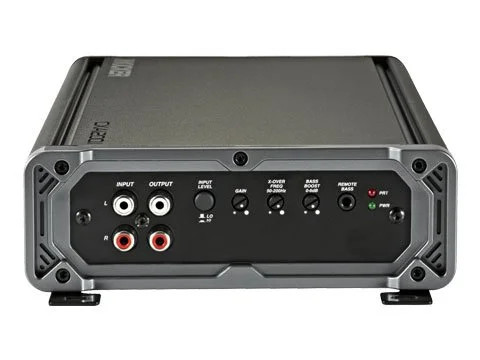

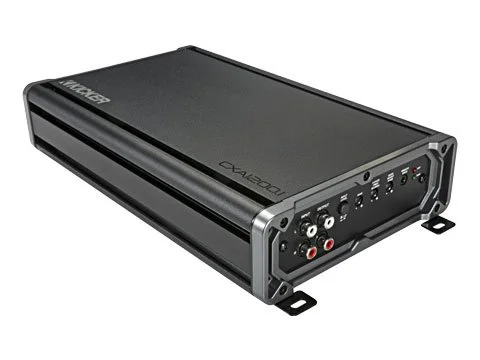

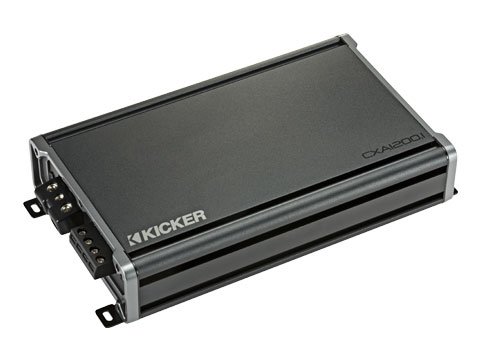

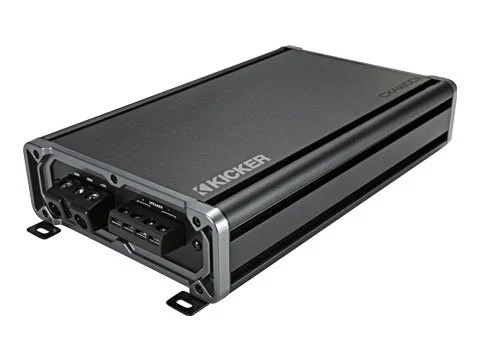

The CXA1200.1 Mono Amplifier is built for affordable power and performance, thanks to an optimized circuit layout and the high-grade internal components.
Efficient Class-D amplifier
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
24dB subsonic filter for protection from potentially damaging frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Compatible with CXARC Remote Bass Control
Vertical mounting hardware included for another unique look
This mono CX-Series Amp is now one-ohm stable, giving you even more wiring options for your system! The Class-D CXA1200.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music.
CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!
Use the full-range outputs to expand your system with other bass amps, or add a full-range amp to complete your system.
This CX.1 Amplifier delivers as much as 1,200 watts into one bass channel. See below for more details.
MODEL CXA1200.1 Power (watts/ch) 4 Ohm600x1 Power (watts/ch) 2 Ohm1200x1 Power (watts/ch) 1 Ohm1200x1 +/-10% CXRC Remote Bass Capable (sold sep.)yes Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L)12, 30.6 Frequency Response (Hz):25-200Hz
Input Sensitivity:125mV–5V (Low Level) White Paper46CXA12001-wp.pdf
1V–40V (High Level) Signal-to-Noise Ratio:95dB Active Crossover:Variable Lo-pass 50Hz–200Hz, 12dB/octave Subsonic Filter:25Hz @24dB/octave KickEQ™ Boost Variable 0-6dB @40Hz Warranty When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase.
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.
