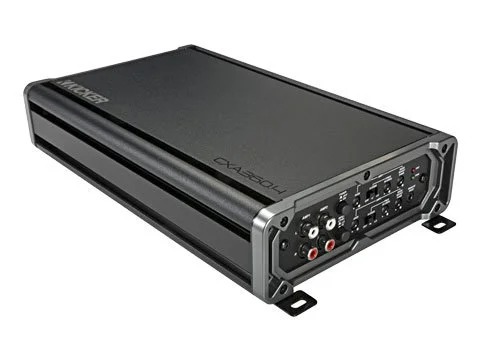

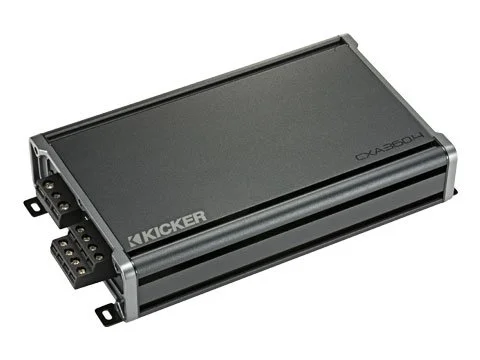

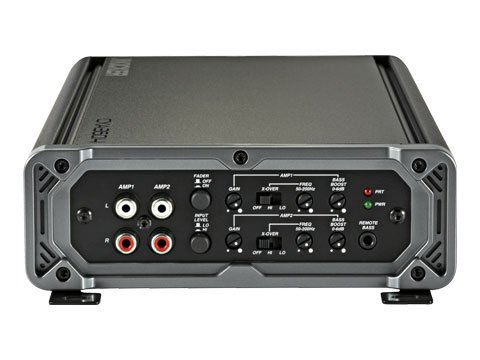

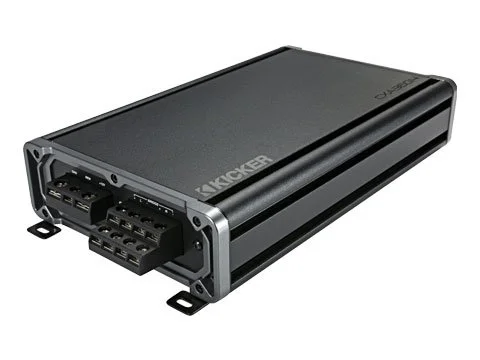

The CXA360.4 Four-Channel Amplifier is built to power all your door speakers in a single, powerful package.Class A/B full-range channels
Using Class A/B power, this amp features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump. A powerful 12dB crossover is also included, letting you quickly tune your system to perfection.
CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!
Highly efficient heat sinks keep the amp cool with a sophisticated new look, while KICKER’s FIT+™ (Fail-safe Integration Technology-PLUS), gives you outstanding noise rejection - even with premium factory audio systems.
This CX-Series Amplifier delivers as much as 90 watts into four full-range channels, or 180 watts into two bridged channels. See below for more details.
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Vertical mounting hardware included for another unique look
Compatible with CXARC Remote Bass Control (AMP2 must be in LO-PASS X-OVER mode)
MODEL CXA360.4 Power (watts/ch) 4 Ohm Stereo65x4 Power (watts/ch) 2 Ohm Stereo 90x4 Power (watts/ch) 4 Ohm Mono180x2 CXARC Remote Bass Capable (sold sep.)Yes Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L) 12-1/2, 31.7 Frequency Response (Hz):10Hz-20kHz
Input Sensitivity:125mV–5V (Low Level) White Paper46CXA3604-wp.pdf
1V–40V (High Level) Signal-to-Noise Ratio:95dB Active Crossover:HI, LO or OFF; Variable 50–200Hz @ 12dB/OctaveSubsonic Filter:n/a KickEQ™ BoostVariable 0-6dB @40Hz
Warranty When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase.
