CX-Series amps reach massive power levels thanks to an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool and an optional remote level control lets you adjust bass on the fly.
Class A/B full-range channels
Class D bass channel included for one amp to run an entire system
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
24dB subsonic filter for protection from potentially damaging frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Vertical mounting hardware included for another unique look

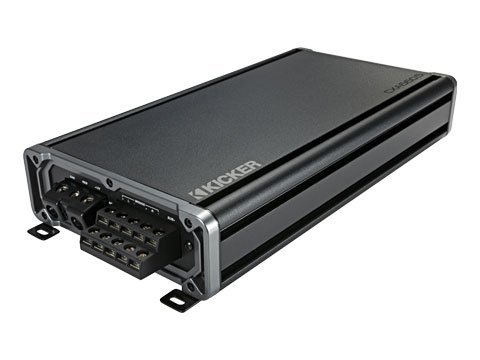

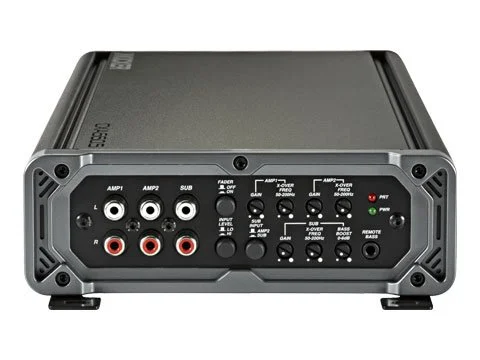

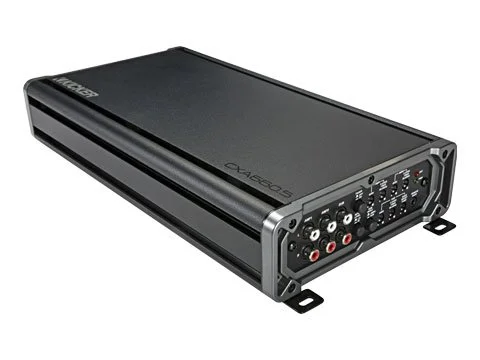

The CXA660.5 Amplifier is built to be the complete package in one cool-looking amp.
This CX amplifier uses powerful Class A/B technology to power four mid/high-range channels and an ultra-efficient Class D power plant for the bass channel. The amp also comes equipped with FIT+™ (Fail-safe Integration Technology-PLUS), giving you superior clarity and dependability.
KickEQ™ variable bass boost gives you as much as a 6dB of extra bump. A powerful 12dB crossover and 24dB subsonic filter is also included, letting you quickly tune your entire system to taste. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music.
This CX amplifier delivers as much as 90 watts into four full-range channels or 180 watts into two-bridged channels, plus as much as 300 watts into one bass channel. See below for more details.
MODEL CXA660.5 Power (watts/ch) 4 Ohm Stereo65x4 Power (watts/ch) 2 Ohm Stereo90x4 Power (watts/ch) 4 Ohm Stereo180x2 Power (watts/ch) 4 Ohm Mono Sub Ch150x1 Power (watts/ch) 2 Ohm Mono Sub Ch300x1 CXRC Remote Bass Capable (sold sep.)yes Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17 W x ...L)14-1/8, 35.7 Frequency Response (Hz):10Hz-20kHz Frequency Response (Hz – Sub Ch.):25Hz-200Hz
Input Sensitivity:125mV–5V (Low Level) White Paper46CXA6605-wp.pdf
1V–40V (High Level) Signal-to-Noise Ratio:90dB Active Crossover:Amp 1-2: High Pass 10-200Hz @ 12dB/Octave
Sub Channel: Low Pass 50-200Hz @ 12dB/Octave Subsonic Filter:25Hz @24dB/Octave KickEQ™ BoostVariable 0-6dB @40Hz Warranty When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase.
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.
