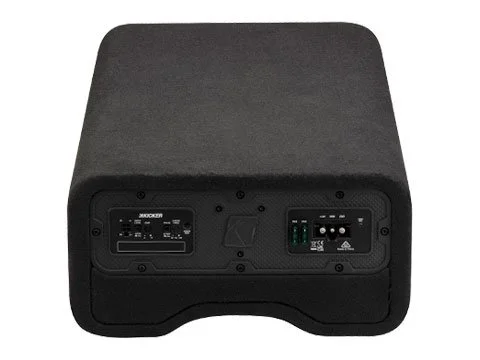

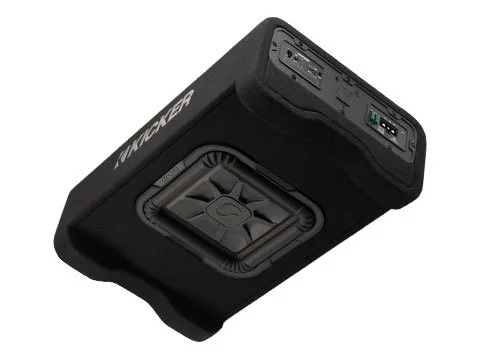

Everything you need in one package, and then some! Award-winning Solo-Baric L7 Subwoofers in a tough but convenient, down-firing enclosure, and big power from an internal amplifier providing big bass to your vehicle. Outstanding!
Compact, factory-tuned enclosure for tight locations to fit many trucks and SUVs
Two models available – 12-inch sub with 600-watt amp, or a 10-inch sub with 500-watt amp
Amp is built-in and power-matched for the hardest-hitting bass
Easily integrates with factory system
Down-firing for ultimate subwoofer protection
Thick, tough internal bracing to resist stacking weight
Solo-Baric L7 square technology for moving more air and creating more bass
Start/Stop-System Compatible
Remote bass control included
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.
Product Dimension Sheet 53PL7TDF10 DimensionsTYPE powered down-fire WOOFER SIZE (in, cm)10, 25RMS POWER (watts at 14.4v)500 PHASE SWITCH 0-180° FREQUENCY RESPONSE (Hz)25-120 S-TO-N RATIO (A-weighted, re: rated power)>90dB INPUT SENSITIVITY Low Level – 125mV-5V; High Level – 1V-40V
CROSSOVER active 24dB/octave, variable 50-120Hz low pass; 24dB/octave, high pass at 25Hz BOX HEIGHT (in, cm)7-1/2, 19.1 BOX DEPTH (in, cm)14-3/8, 36.5 BOX WIDTH (in, cm)23-3/8, 59.5 Warranty When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase.
