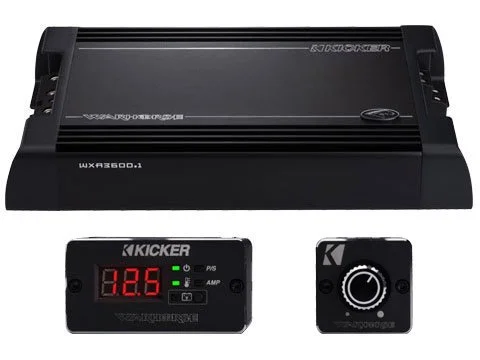

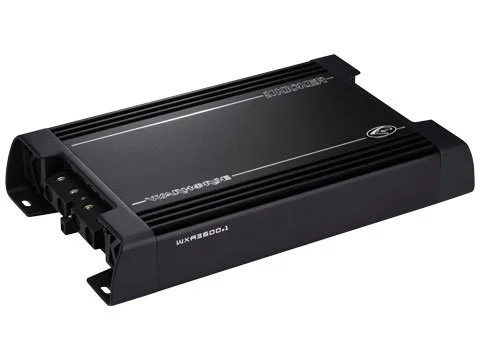

The Warhorse WXA3600.1 was engineered completely in-house by KICKER Research and Development for ultra-high SPL applications.
Features extreme reliability under intense bass power and overall use
Engineered completely in-house by KICKER R&D
Full-bridge Class-D design
Quad micro-controller-regulated cooling fans
Capable of daisy-chaining remote power across multiple amps
Competition mode switch to avoid potentiometer creep, fix crossover setting, and gain-match multiple amps
Includes premium remote bass-level control with a magnetic mount – 19.75 feet (6m) RJ45 cable
Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status – 19.75 feet (6m) RJ45 cable
Fully compatible with most factory or aftermarket source units (with FIT+™ differential inputs)
WARHORSE Install Scenarios: WarhorseInstallScenariosv2.pdf
MODEL WXA3600.1 WARHORSE 3600.1 white paper with full tech graph data49WXA36001 Whitepaper PDF WARHORSE 3600.1 Dimensions 49WXA36001 Product Dimensions PDF RMS Power (watts/ch) 1 Ohm Mono (@ 14.4v, <1%THD)3600x1* RMS Power (watts/ch) 2 Ohm Mono (@ 14.4v, <1%THD)2500x1* RMS Power (watts/ch) 4 Ohm Mono (@ 14.4v, <1%THD)1400x1** Dynamic Power (watts)5000 Frequency Response (Hz)10-200 Signal-to-Noise Ratio (dB; A-weighted, re: rated power)>90
Signal-to-Noise Ratio (dB; ref: 1W output)>70 Input Sensitivity low level 125mV-5V
high level 1V-40V Selectable Electronic Crossover Variable Low-pass 50-200Hz, 24dB/octave Subsonic Filter Defeatable @ 15Hz, 24dB/octave Competition Mode warhorse-competition-mode.pdf Dimensions (in, cm)H – 2-9/16, 6.5
W – 9-1/8, 23.2 L – 15-3/8, 39.1
Warranty When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase.
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.
