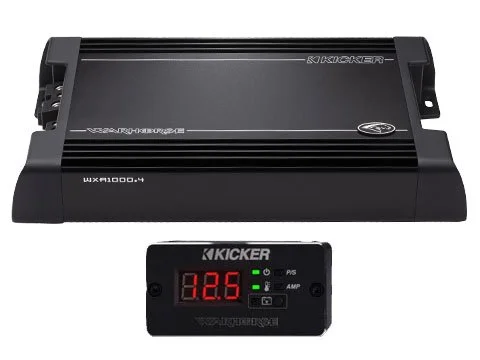

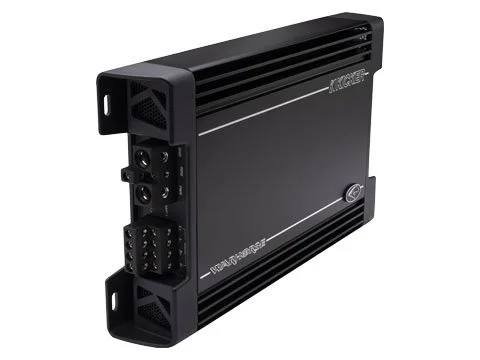

The Warhorse WXA1000.4 provides 2000 watts of dynamic power while still maintaining complete reliability under this intense power use.
Engineered completely in-house by KICKER R&D
Features extreme reliability under intense power and overall use
Ultra-efficient, half-bridge Class-D design
Fully start/stop compliant – operational to 6.5V

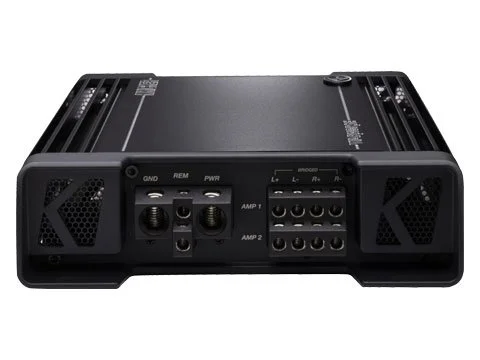

1/0 Power and Ground inputs to ensure you get the power you paid for
Capable of daisy-chaining remote power across multiple amps
Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status – 19.75 feet (6m) RJ45 cable

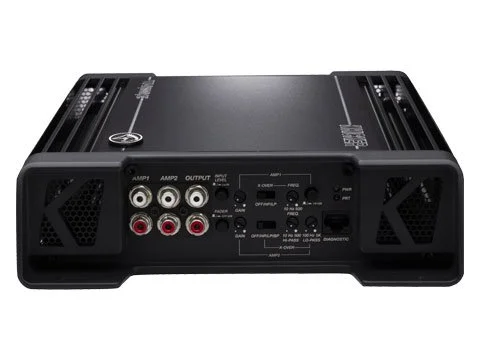

Fully compatible with most factory or aftermarket source units (with FIT+™ differential inputs)
WARHORSE Install Scenarios: WarhorseInstallScenariosv2.pdf
MODEL WXA1000.4 WARHORSE 1000.4 white paper with full tech graph data 49WXA10004 Whitepaper PDF WARHORSE 1000.4 Dimensions 49WXA10004 Product Dimensions PDF* RMS Power (watts/ch) 2 Ohm Stereo (@14.4V, <1% THD)450x4* RMS Power (watts/ch) 4 Ohm Stereo (@14.4V, <1% THD)250x4* RMS Power (watts/ch) 4 Ohm Bridged Mono (@14.4V, <1% THD)900x2** Dynamic Power (watts)2000 Frequency Response (Hz)10-20k Signal-to-Noise Ratio (dB; A-weighted, re: rated power)>90 Signal-to-Noise Ratio (dB; ref: 1W output)>70Input Sensitivity low level 125mV-5V high level 1V-40V Selectable Electronic Crossover - AMP 1Off/HP/LP; 24dB/octave BW, variable 10-5kHz w/ 10X switch; Selectable Electronic Crossover - AMP 2Off/HP/LP/BP; 24dB/octave BW, lo-pass 100-5000Hz, hi-pass 10-500Hz Dimensions (in, cm)H – 2-9/16, 6.5
W – 9-1/8, 23.2 L – 15-3/8, 39.1
Warranty When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase.
